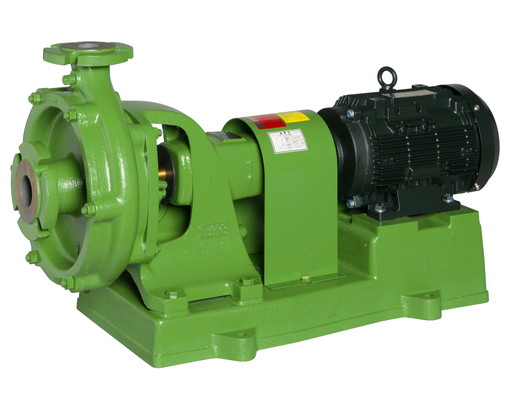

model SAL
Light-slurry service end suction pump
Features and Benefits
- ・Special design that includes the ""limit-load"" feature, without exceeding horse power limits when pumping.
- ・Directly connected electric motor as part of the standard specifications, making its operation stable.
- ・Main frame and impeller are made using a special cast iron, increasing resistance to abrasion.
- ・Leakage to the ground is reduced by using a reinforced pump outvane.
Specifications
| Handling liquid | Liquid electrolyte | Slurry containing granules |
| Temperature | 0 to 80 ℃ | |
| Density | 1.1kg / ℓ | |
| Allowable pushing pressure | Allowable pushing pressure | 0.1MPa |
| Flange | Flange | JIS10K equivalent |
| Structure | Impeller | semi-open |
| Shaft seal | grand packing | |
| Bearing | sealed ball bearings, ball bearings (oil bath) | |
| Materials | Casing | chromium cast iron / two-phase stainless |
| Impeller | high chromium cast iron / two-phase stainless | |
| Main shaft | SUS403 (EFG type), S35C (HJ type) |
