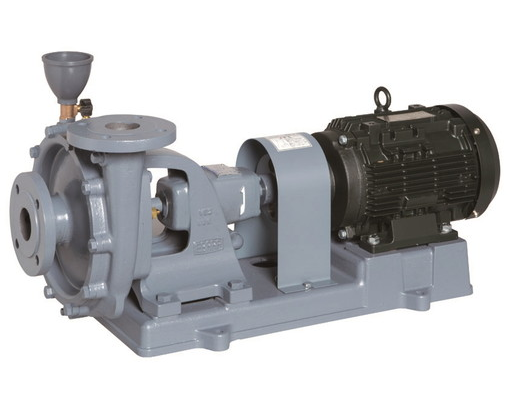

model S

Single-stage end suction pump

・4Pole product with silent operation.
・Space saviing with the small base.
・The plumbing constructions is easier because of the same diameter size of the suction and discharge.
・The belt driven is possible because of the firm bearing structure.

Specifications

Handling liquid	Handling liquid	Clear water 0 to 80 ℃
Suction total head	Suction total head	-6m (20 ℃) (In the selection diagram discharge weight range within)
Standard allowable boost pressure	Standard allowable boost pressure	0.3MPa {3kgf /cm²} : Other than the following models 0.4MPa {4kgf /cm²} : 40SF, 50SE/F, 65SE *1
Cunstruction	Impeller	Closed
	Shaft seal	grand packing
	Bearing	sealed ball bearings
Flange	Flange	JIS 10K type (thin)
Materials	Casing	FC200
	Impeller	FC150: other than the following models SUS304: 40SF/G, 50SF/G *1
	Main axis	SUS403
Motor	The number of phase-poles	three-phase, 4-pole
	Voltage	200 / 220V: 37kW or less 200/220 · 400 / 440V: 45kW or more
	Format-protection scheme	all enclosed fan-cooled · IP44 (indoor)
	Efficiency	IE3 (Premium efficiency)
Installation Place	Installation Place	indoor
