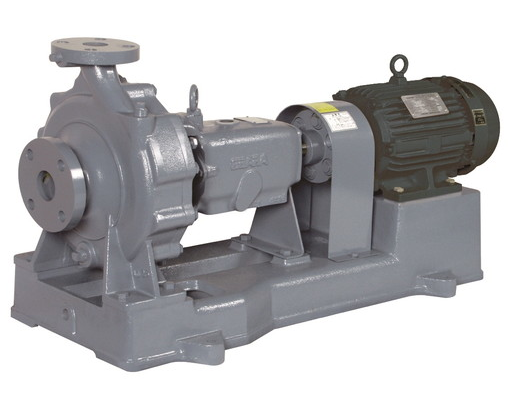

model IBL
Single-stage end suction pump
Features and Benefits
- ・Back pull-out structure enables disassebly and inspection without removal of suction and discharge piping.
- ・High efficiency across a wide range of capacity.
- ・Can be used for suction pressure up to 7kgf/cm2.
- ・Quiet operation.
- ・Conforms JIMS and ISO2868 (excluding some models)
Specifications
| Model | Model | Standard | Optional |
| Handling liquid | Handling liquid | Clear water 0 to 80°C | |
| Max. suction pressure | Max. suction pressure | 0.4MPa (4kgf/cm2) | 0.41 to 0.7MPa (4.1 to 7.1kgf/cm2) |
| Max. working pressures | Max. working pressures | 1.37MPa (14kgf/cm2) | |
| Materials | Casing | FC250 | |
| Impeller | FC200 or FC400 | CAC406 (FC200 model) or SCS13 (FC400 model) |
|
| Shaft | S35C or SCM440 | SUS420J1 or SUS304 | |
| Shaft sleeve | SUS420J1 | SUS304 | |
| Motor | Motor | Three phase, 2 pole or 4 pole (For the available voltage, please refer to the attached “Voltage list”) TEFC Indoor type : 0.4 to 55kW ODP type : 72 to 250kW |
TEFC Outdoor type |
| Location | Location | Indoor | |
| Other | Other | Special common base |
