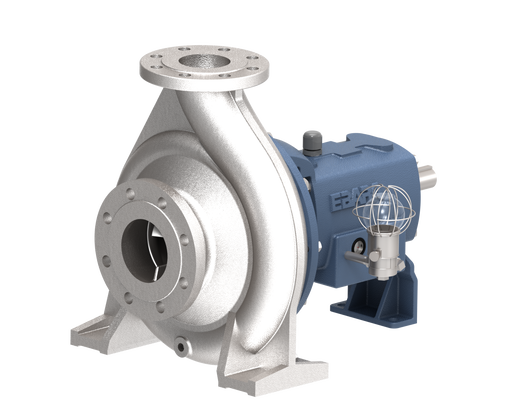

model GSO
Single-stage end suction pump
Features and Benefits
- Comply with international standards
- ・Outline dimension: ISO2858 and EN22858
- ・Pump design:ISO5199
- ・Seal chamber dimension:ISO3069
- Available in wide application
- ・Impeller with unique reverse open shape can be applied for chemical liquid containing light slurry.
- ・Gland cover copatible with various shaft seal types.
- Extending bearing and seal life
- ・Less axial thrust load and low seal box pressure by uniqure shape impeller.
- ・Heavy duty design to reduce vibration and shaft deflection.
- Energy saving
- ・World top class pump efficiency achieved.
- Maintenance friendly design
- ・Back pull-out construction for easy maintenance without disassembling suction and discharge piping. Minimized maintenance cost and stock parts by high interchangeability of parts.
Specifications
| Capacities | Capacities | To 1400m3/h (50Hz) To 1400m3/h (60Hz) |
| Heads | Heads | To 150m (50Hz) To 140m (60Hz) |
| Liquid temperatures | Liquid temperatures | -30℃ to 150℃ |
| Max. working pressures | Max. working pressures | Up to 16 Bar （1.6 Mpa) |
| Materials | Materials | Casing: 304 Stainless Steel Impeller: 304 Stainless Steel |
| Standards | Standards | ISO2858, ISO5199 |
| Rotation | Rotation | Clockwise viewed from coupling end |
- *1:316 stainless steel can be selected as an option.
