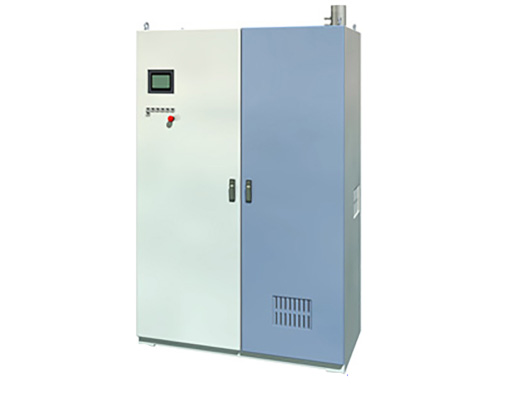

model GCR

Highly efficient, energy-saving catalysis-type exhaust abatement system

  • Catalysis-type exhaust abatement system
  • Low power consumption
  • Highly efficient abatement of PFC gases
  • No fuel required
  • Low maintenance costs
Contact
Features and Benefits
  • Model GCR is a catalysis-type exhaust abatement system that efficiently decomposes and removes gases, including PFC gases such as CF4 used for etching oxide semiconductor films, at low running costs.

Specifications

Type Type Unit GCR120* GCR250
Abatement method Abatement method catalytic + wet catalytic + wet
Reactor life detector Reactor life detector PFC detector PFC detector
Max. inflow gas volume Max. inflow gas volume L/min 120 250
Dimensions Dimensions W x D x H mm 1,200×600×1,800mm 1,400×700×1,850mm
Gases (e.g.) Gases (e.g.) CF4, C2F6, C3F8, CHF3, SF6, C5F8, C4F6, NF3, HF, F2, SiF4, CO, COF2, N2O, etc. CF4, C2F6, C3F8, CHF3, SF6, C5F8, C4F6, NF3, HF, F2, SiF4, CO, COF2, N2O, etc.
