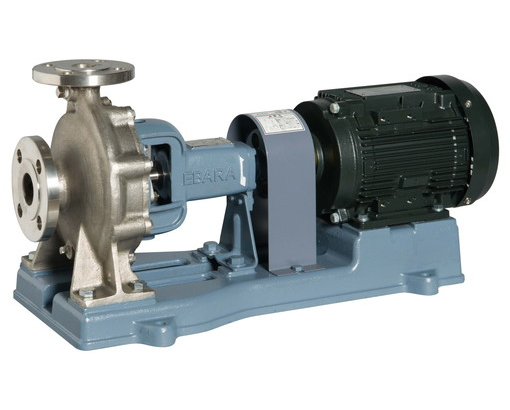

model FSS

Single-stage end suction pump

・Variety of models made with stainless steel.
・Wide selection available of both 2 pole and 4 pole models.
・As it is made of stainless steel, chemical solutions can be used.
・Back pull-out structure enables disassembly and inspection without removal of suction and discharge piping.
・Expulsion valve is located in the centre of the casing, along with support legs, reinforcing the piping load structure.

Specifications

Handling liquid	Liquid electrolyte	Clear water, oil, chemical liquid
	Temperature	0 to 100 ℃
	Viscosity	10mPa · s {cP} below
	Density	0.7 to 1.0kg / ℓ
Flange	Flange	JIS10K
Max. working pressures	Max. working pressures	0.98MPa
Structure	Impeller	Closed
	Shaft seal	grand packing, mechanical seal
	Bearing	sealed ball bearings, ball bearings (oil bath)
Materials	Casing	SCS13
	Impeller	SCS13
	Main shaft	SUS304
