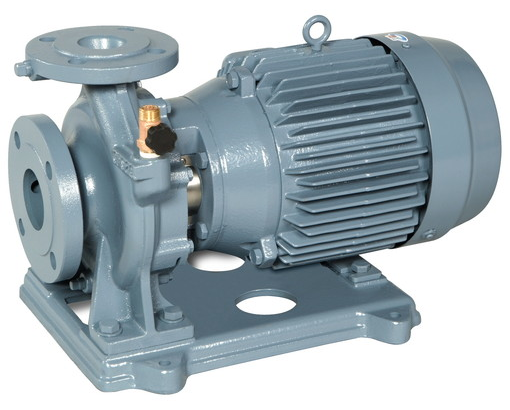

model FSD
Direct coupled single-stage end suction pump
Features and Benefits
- ・The compact design because of the motor directly connected to the pump.
- ・As the motor is low-noise and enclosed fan cooler, it is possible to use indoors and outdoors.
- ・The pump efficiency is improved than traditionl type because of the impeller and the casing analysis.
- ・A protector is attached to the exposed part of the rotating body to enhance safety.
Specifications
| Handling liquid | Handling liquid | Clear water 0 to 100 ℃ |
| Suction total head | Suction total head | -6m (20 ℃) (in selected view discharge weight range within) |
| Standard allowable pushing pressure | Standard allowable pushing pressure | Please see the syllabus table. |
| Cunstruction | Impeller | Closed |
| Shaft seal | mechanical seal | |
| Bearing | sealed ball bearings (in the motor) | |
| Flange | Flange | JIS 10K type (average) compliant goods |
| Materials | Casing | SUS304 |
| Impeller | SUS304 | |
| Main shaft | SUS304(wetted parts) | |
| Motor | The number of phase-poles | three-phase, 2-pole |
| Voltage | 200V (50Hz) 200 / 220V (60Hz) | |
| Format | all enclosed fan-cooled ・ IP44(outdoor) | |
| Efficiency | IE3(Premium efficiency) | |
| Location | Location | Indoor and outdoor |
