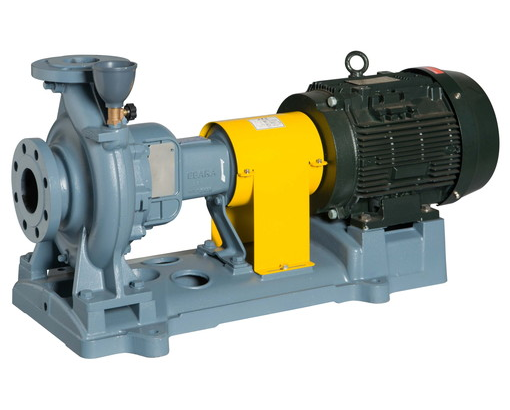

model FS

Single-stage end suction pump

Building service
End suction
Volute pump
Swimming pool
Air-conditioning
Fire-fighting

Features and Benefits

・The series are 2-pole type which is in pursuit of small size and light weight and 4-pole type.
・Back pull-out type can be dissembled and inspected without removing the suction and discharge piping.
・Top centerline discharge, foot support under casing for maximum resistance to misalignment and distortion from pipe loads.

2Pole
4Pole

Diameter	Diameter	32-100mm
Liquid temperatures	Liquid temperatures	0℃ to 100℃
Max. working pressures	Max. working pressures	Up to 0.98MPa
Materials	Materials	Casing： Cast Iron
Motor	Motor	Efficiency: IE3 1,2 1:Three phases of more than 0.75kW can utilize the Top Runner Motor. 2:Three phases of less than 0.75kW will be most suitably used with the Premium Efficiency (an original setting of our firm）Electric Motor.

Diameter	Diameter	40-250mm
Liquid temperatures	Liquid temperatures	0℃ to 100℃
Max. working pressures	Max. working pressures	Up to 0.98MPa (Diameter smaller than 100x80mm) Up to 1.37MPa (Diameter bigger than 125x100mm)
Materials	Materials	Casing： Cast Iron
Motor	Motor	Efficiency: IE3 1,2 1:Three phases of more than 0.75kW can utilize the Top Runner Motor. 2:Three phases of less than 0.75kW will be most suitably used with the Premium Efficiency (an original setting of our firm）Electric Motor.
