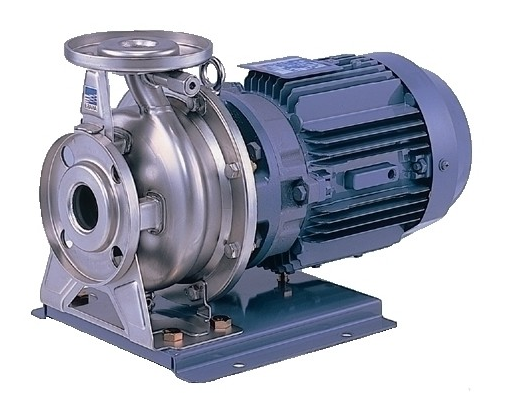

model FDP
Direct coupled single-stage end suction pump
Features and Benefits
- ・Product conforms to effusion performance standards, with stainless steel, etc. used for wetted parts.
- ・Can be used for liquids of temperatures of up to 100 °C, making it ideal for hot-water supply and circulation.
- ・All models are equipped with a low-noise, totally enclosed fan cooled motor, making it suitable for use both indoors and outdoors.
- ・EBARA’s exclusive bulge forming process applied to casing for high-efficiency
- ・Exposed rotor with protector to enhance safety
- ・Same mounting dimensions as cast iron pumps (Model FSD)
Specifications
| Shaft seal | Shaft seal | Mechanical seal |
| Flange | Flange | JIS 10K Type (Standard) conforming product |
| Liquid | Type | Clear water |
| Temperature | 0 to 100 °C | |
| Heads | Heads | －6 m (20 °C) (Within discharge volume range in drawing) |
| Casing | Casing | SUS304 |
| Electric motor | Phase, Poles | 3 phase / 2 poles |
| Voltage | [50Hz]200V、[60Hz]200/220V | |
| Type / Protection Method | Type / Protection Method | |
| Efficiency | IE3 (Premium efficiency) *1*2 |
- *1 Top Runner Motor for three-phase, 0.75 kW or higher models
- *2 Premium efficiency (EBARA’s original) motor for three-phase, less than 0.75 kW models
