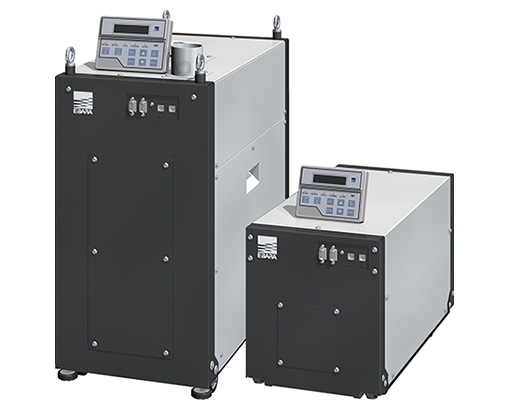

model ESR
Dry vacuum pump with low power consumption, suitable for corrosive process applications
Features and Benefits
- With EBARA’s unique rotor design and idling function, the Model ESR range achieves low power consumption and a small footprint. Helps to reduce running costs. With enhanced corrosion resistance options available, this model offers a wide range of applications from light-load processes such as load-lock and SEM to corrosive processes.
Specifications
| Type | Type | Unit | ESR20N | ESR30 | ESR30N | ESR500W(N) |
| Cooling water | Flow rate | L/min | 2~8 | 3.5~8 | 3.5~8 | 3.5~8 |
| Temperature | ℃ | Max. 30 | Max. 30 | Max. 30 | Max. 30 | |
| Power supply | Power capacity | kVA | 4 | 7 | 7 | 12.3 |
| Pumping Speed | Pumping Speed | L/min | 1,300 ~ 2,000 | 3000 | 3000 | 46000 |
| Ultimate Pressure | Ultimate Pressure | Pa | 2 | 0.53 | 0.67 | 0.2 |
| Connection | Inlet | NW40 | NW50 | NW50 | ISO160 | |
| Outlet | NW40 | NW40 | NW40 | NW40 | ||
| Approx. Power at Ultimate Pressure | Approx. Power at Ultimate Pressure | kW | 0.7 | 1.7 | 1.7 | 3.1 |
| N2 | Flow rate | Pa•m3/s | 19~22 (0) | 19~22 (3.4) | 19~22 (3.4) | 19~22 (3.4) |
| Power supply Phase/Volt/Freq. | 200V Models | 3-phase/200V/50Hz 3-phase/200-220V/60Hz |
3-phase/200V/50Hz 3-phase/200-220V/60Hz |
3-phase/200V/50Hz 3-phase/200-220V/60Hz |
3-phase/200V/50Hz 3-phase/200-220V/60Hz |
|
| 400V Models | 3-phase/380-400V/50Hz 3-phase/380-440V/60Hz |
3-phase/380-400V/50Hz 3-phase/380-440V/60Hz |
3-phase/380-400V/50Hz 3-phase/380-440V/60Hz |
3-phase/380-400V/50Hz 3-phase/380-440V/60Hz |
||
| Weight | Weight | kg | 90 | 190 | 190 | 500 |
