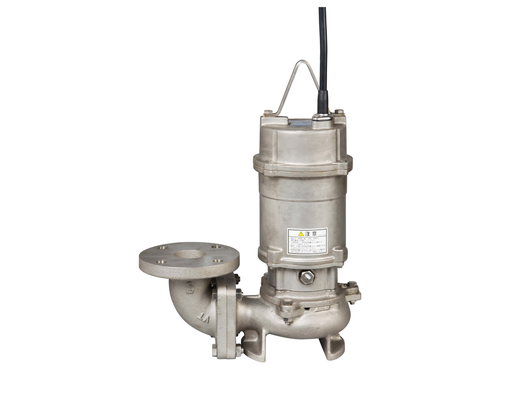

model DVSL
Stainless steel submersible pump
Features and Benefits
- ・Main components with stainless steel is optimized rust resistance and capable of withstanding corrosion for light chemical duty.
- ・Semi-vortex impeller permits foreign matter passing sized 40 to 63% of discharge diameter.
- ・Built-in motor protector protects the motor from overload or open phase.
- ・Optional quick discharge connector facilitates easy installation and maintenance.
Specifications
| Flange | Flange | JIS 10K Thin type |
| Liquid | Type | Several kinds of liquid with foreign particle (pH 5-9) |
| Temperature | 0℃ to 40℃ | |
| Max solids size | Pump Size | 50 65 80 |
| Solid size | 21mm 33mm (41mm for 2.2kW and above) |
|
| Fiber length | 150mm 200mm (245mm for 2.2kW and above) |
|
| Max. Submergence level | Max. Submergence level | 4m : 1.5kW and below 8m : 2.2kW and above |
| Pump | Construction: Impeller | Semi-vortex |
| Construction: Shaft Seal | Double mechanical seal | |
| Construction: Bearing | Sealed ball bearing | |
| Material: Casing | SCS13 | |
| Material: Impeller | SCS13 | |
| Material: Shaft Seal | IC/SIS : lower side Ceramic vs carbon : upper side NBR : Rubber |
|
| Motor | Type / Pole | Airfilled submersible motor / 2 Pole |
| Phase / Voltage | 3phase | |
| Material: Frame | SCS13 | |
| Material: Shaft | SUS304 | |
| Material: Cable | VCT : 1.5kW and below Anti-heat VCT : 2.2kW and above |
