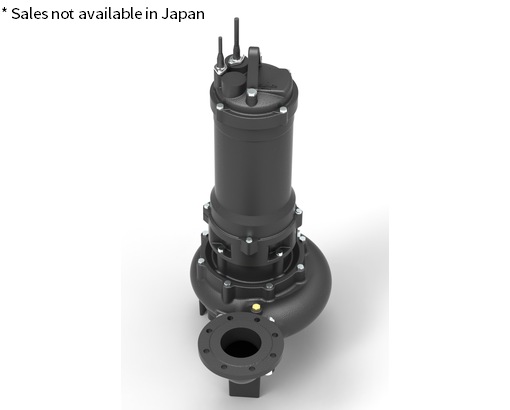

model DML3
Submersible pump for sewage and waste water
Features and Benefits
- Submersible electric pumps with single-channel cast iron impeller, for sewage.
- Motor in efficiency class IE3
- High functionality as standard
- ・Class H insulation system (180℃)
- ・Designed for inverter drive
- ・Protector device provided
- - Thermal protection in stator winding
- - Leakage detector (float type)
- Available option of QDC* installation
- *Quick Discharge Connector
- Advantage of EBARA IE3 submersible motors
- ・Efficiency comparison with the conventional models
- - Motor efficiency: up to 12% higher
- - Overall efficiency: up to 5% higher
- ・Longer life operation for the winding and bearing with low temperature rise
Specifications
| Scope | Discharge | 80 to 150mm |
| Motor Power | 2.2 to 22kW(3phase) | |
| Performance | Capacity: 18 to 330m3/h(50Hz) Capacity: 12 to 306m3/h (60Hz) Head:4 to 39m (50Hz) Head:3.5 to 41m (60Hz) |
|
| Liquid | Type | Sewage |
| Temperature | 0 to 40℃ | |
| Max solid size(mm) | 76mm | |
| Submergence | Maximum | 8m |
