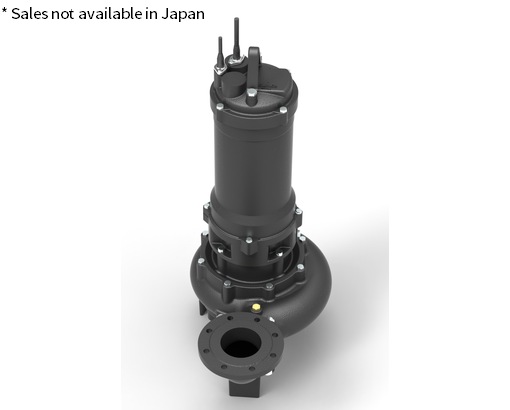

model DML
Submersible pump for sewage and waste water
Features and Benefits
- ubmersible electric pumps with single-channel impeller cast iron, for sewage.
- ・Pump body, single-channel impeller, cast iron (bend) elbow.
- ・The shaft is in SUS 403 for model DML.
- ・Mechanical seal:
- - SiC/SiC/NBR (pump side)
- - Carbon/Ceramic/NBR (motor side)
Specifications
| Scope | Discharge | 80 to 150mm |
| Motor Power | 2.2 to 22kW(3phase) | |
| Performance | Capacity: 12 to 330m3/h (50Hz) Capacity:12 to 306m3/h (60Hz) Head:4 to 38.5m (50Hz) Head:3.5 to 41m (60Hz) |
|
| Liquid | Type | Sewage |
| Temperature | 0 to 40℃ | |
| Max solid size(mm) | 76mm | |
| Submergence | Maximum | 7m |
