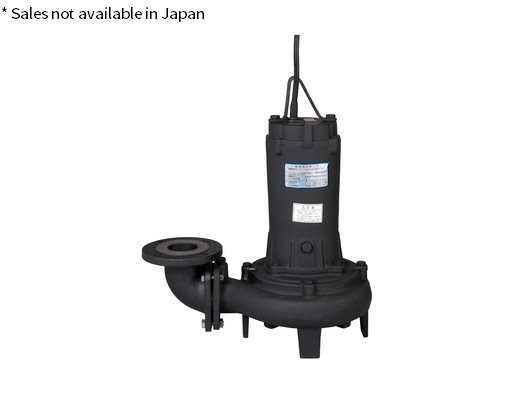

model DL3
Submersible pump
Features and Benefits
- Submersible electric pumps with semi-open cast iron impeller, for sewage.
- Motor in efficiency class IE3
- High functionality as standard
- ・Class H insulation system (180℃)
- ・Designed for inverter drive
- ・Protector device provided
- - Thermal protection in stator winding
- - Leakage detector (float type)
- Available option of QDC* installation
- *Quick Discharge Connector
- Advantage of EBARA IE3 submersible motors
- ・Efficiency comparison with the conventional models
- - Motor efficiency: up to 12% higher
- - Overall efficiency: up to 5% higher
- ・Longer life operation for the winding and bearing with low temperature rise
Specifications
| Scope | Discharge | 65 to 300mm |
| Motor Power | 1.5 to 45kW(3phase) | |
| Performance | Capacity: 4.2 to 780m3/h (50Hz) Capacity: 4.2 to 840m3/h (60Hz) Head:3 to 51m (50Hz) Head:3 to 45m (60Hz) |
|
| Liquid | Type | Sewage |
| Temperature | 0 to 40℃ | |
| Max solid size(mm) 50Hz | Φ65 : 40 (5.5 to 22 kW : 46) Φ80 : 50 (3.7 to 22 kW : 46) Φ100 : 57 (DLC3 : 46) Φ150 : 68 (30 to 45 kW :76) Φ200 : 73 (30 to 45 kW :76) Φ250 : 79 (30 to 45 kW :76) Φ300 : 88 (30 to 45 kW :76) |
|
| Max solid size(mm) 60Hz | Φ65 : 40 Φ80 : 50 (3.7 to 11 kW : 46) Φ100 : 57 (DLC3 : 46) Φ150 : 68 (30 to 45 kW :76) Φ200 : 73 (30 to 45 kW :76) Φ250 : 79 (30 to 45 kW :76) Φ300 : 88 (30 to 45 kW :76) |
|
| Max fibers length(mm) 50Hz,60Hz | Φ65 : 195 Φ80 : 195 Φ100 : 300 Φ150 : 400 (30 to 45 kW : 500) Φ200 : 500 Φ250 : 550 (30 to 45 kW : 500) Φ300 : 600 (30 to 45 kW : 500) |
|
| Submergence | Maximum | 8m |
