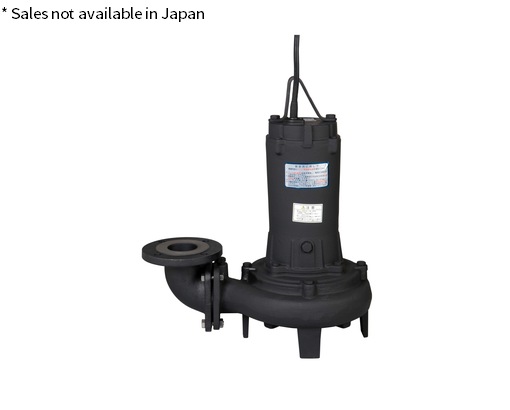

model DL
Submersible pumps for sewage and waste water
Features and Benefits
- ・Unique impeller design prevents overload under severe operating conditions.
- ・Semi-open non-clog impellers prevent pump clog by foreign matter. 4 pole induction motor runs with high torque to enhance foreign matter passing.
- ・Flow condition is less affected by water level fluctuation in the pit due to hydraulic design.
- ・Built-in motor protector (automatic cut-off for model below 7.5kW and thermal protector over 11kW) protects the motor from overload or open phase.
- ・Optional quick discharge connector facilitates easy installation and maintenance.
- ・Model DLA permits automatic operation.
- Parallel alternate operation possible with model DLA and DLJ.
- ・Optional cutter mechanics is available for limited models.
- Cocoon-shaped inlet design for below 80 mm discharge and radial groove design for 100 mm discharge is enhanced passing fibrous materials.
Specifications
| Handling liquid | Handling liquid | Sewage and waste water |
| Flange | Rating | 50 to 150mm : JIS10K thin type 200 to 300mm : JIS10K standard |
| Liquid Handled | Model DL | 0.4 to 45kW 0 to 40℃ |
| Model DLA | 0.4 to 45kW 0 to 40℃ | |
| Model DLJ | 0.4 to 3.7kW 0 to 32℃ | |
| Structure | Impeller | Semi-open, Non-clog |
| Shaft seal | Double mechanical seal | |
| Materials | Casing | Cast iron |
| Impeller | Cast iron | |
| Shaft | 403 stainless steel : 0.4 to 22kW | |
| Motor | Type | Air filled watertight |
| Insulation class | E | |
| Protection | Built-in overed protection (up to 7.5kW) Built-in thermal protector (11 to 22kW) |
|
| Number of pole | 4 pole |
