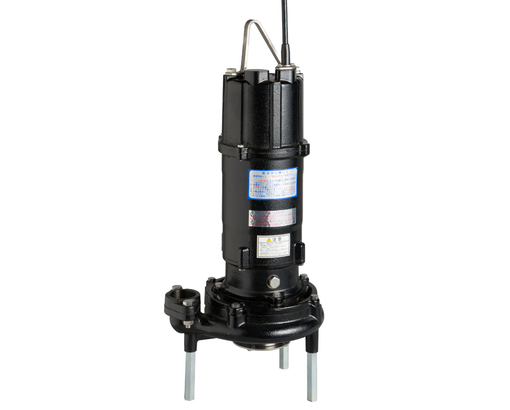

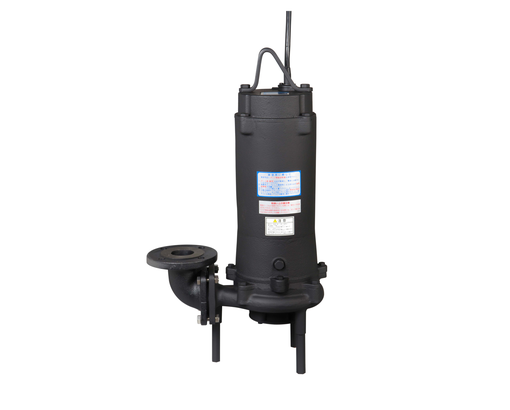

model DG

Submersible pump with grinder

・Powerful grinder (crushing) mechanism in the suction port finely crushes kitchen waste, cloth, rubber, plastic, etc. found in dirty water and pumps them out with the water.
・High head-type vortex impeller enables the product to achieve high head with small water volume, which is ideal for pumping sewage through small-diameter pipes over long distances. Moreover, there is no clogging inside the pump.
・The grinder (crushing mechanism) is made of high chromium cast iron for excellent crushing capacity and high durability.
・The grinder mechanism and vortex impeller prevent clogging in the pump as well as in the pipes and valves, making it possible to reduce the pipe diameter, which leads to energy savings for the entire system.
・Stuffing box uses SiC mechanical seals to prevent water from entering the motor.

Specifications

Liquid	Type	Sewage and wastewater containing foreign objects
	Liquid temperatures	0–40 °C
	pH	5–9
Max. Submergence level	Max. Submergence level	4m (0.4–1.5 kW), 8m (2.2/3.7 kW)
Materials	Casing	FC200
	Impeller	FC200
	Shaft seal	Single-coil double mechanical seal
Types / Poles	Types / Poles	Dry submersible / 2 poles (1.0–3.7 kW), 4 poles (0.4–0.75 kW)
Phase / Voltage	Phase / Voltage	Single phase / 200 V: 0.75/1.0 kW, 3 phase / 200/220 V: 0.4 kW or higher
Flange (connection with pipes)	Flange (connection with pipes)	Diameter 40: Special flange Diameter 50: JIS 10K (thin)

* Foreign objects are objects that are generated in the drainage of household and building equipment. They refer to objects that can be crushed easily, such as rice, vegetable scraps, wood chips, plastics, and straws from kitchens, sanitary products, paper, and cotton cloth from toilets, and hair from bathrooms. Does not include stockings, metals, and gravel.
