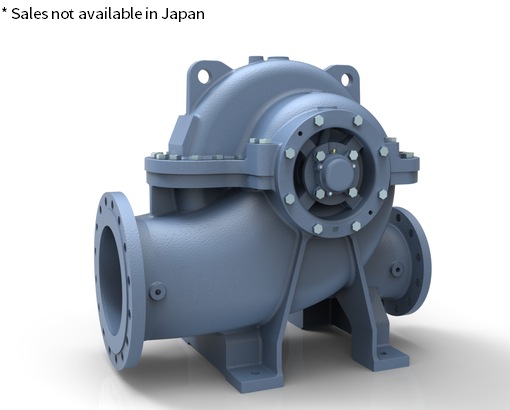

model CB
Double suction pump
Features and Benefits
- High levels of efficiency with leading-edge design
- High efficiency
- ・Challenge to the theoretical limit with optimized hydraulic design
- ・4% Approx. higher than existing model
- Reducing operation cost
- ・Design pump smaller leads required power smaller
- Improving suction performance
- ・ Low NPSH-R while applying higher speed
- ・ Ensure high suction lifts even with large flow
- ・ Minimizing cavitation
Specifications
| Cunstruction | Impeller | Closed double suction |
| Shaft seal | Mechanical Seal | |
| No Flushing | No Flushing | |
| Ball Bearing | Sealed ball bearing(grease lubrication) | |
| Flange | Flange | Jis 16K RF, GB PN 16 RF |
| Capacities | Capacities | To 53m3/min(50Hz) To 62m3/min(60Hz) |
| Heads | Heads | To 135m(50Hz) To 150m(60Hz) |
| Liquid Handled | Type of liquid | Clean water, Industrial water, River water |
| Temperature | 0 to 80℃ | |
| Max. working pressures | Max. working pressures | 16bar(1.6MPa) |
| Materials | Casing | FC250 or FCD450 * |
| Impeller | CAC406 or SCS13 * | |
| Main shaft | SUS420J1 | |
| Mechanical seal | Ceramic/ Carbon NBR or Silicon carbide/ Carbon FPM * |
- *The applicable material is determined by the model.
