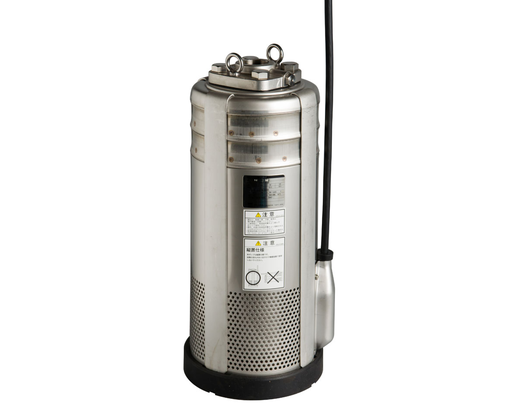

model BMSP
Stainless steel submersible pump
Features and Benefits
- ・Pump complies with the water supply law in Japan as wetted surface is made by stainless steel.
- ・Optimized hydraulic design saves energy consumption.
- ・Installation space is minimized and pump runs with low noise as the pump is submerged.
- ・Water contamination is prevented by use of a water-tight type motor.
- ・Pump permits to drain close to bottom of the pit as suction inlet designs lower portion.
- ・Pump is allowed to install at the underground pit due to light-weight. Optional horizontal installation model is available for below 65 mm discharge model.
Specifications
| Cunstruction | Impeller | Enclosed |
| Flange | Flange | Special flange(below 65mm descharge), JIS 10K normal type |
| Liquid | Type | Clear water |
| Temperature | 0 to 40℃ | |
| Contained sand limit | Contained sand limit | Up to 50mg/L |
| Contained chlorine limit | Contained chlorine limit | Up to 200mg/L |
| Max. pump submergence | Max. pump submergence | 10m |
| Materials | Casing | 304 Stainless Steel |
| Impeller | 304 Stainless Steel, Bronze(100mm discharge) | |
| Shaft | 31 Stainless Steel 316 Stainless Steel (80mm dischaege) 403 Stainless Steel (100mm descharge) |
|
| Motor | Material: Frame | 304 Stainless Steel |
| Material: Shaft | 431 Stainless Steel | |
| Material: Cable | 2PNCT | |
| Type | Water filled submersible motor, 2 pole Canned type |
|
| Starting | D.O.L. starting : Up to 7.5kW Star deita starting : 11kW and over |
|
| Construction: Shaft Seal | Oil seal | |
| Construction: Shaft | Mono block type |
