A pump that allows easy inspection and replacement of underwater bearings
Easy inspection pumps
Product Introduction

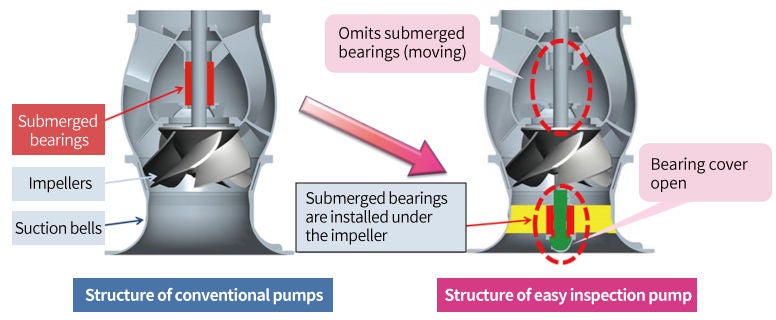

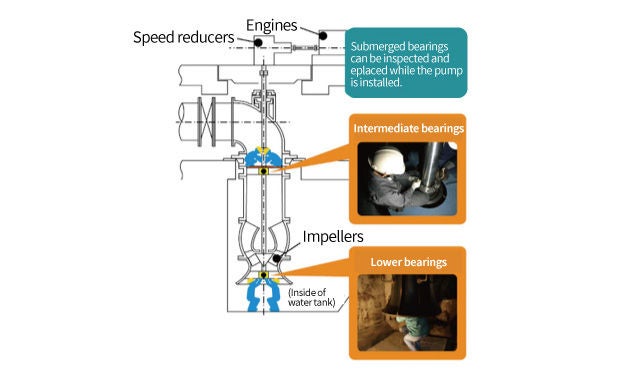

With conventional vertical pumps, the pump had to be pulled up and disassembled to inspect or replace the bearings inside the water, which was time-consuming and costly. The Easy Inspection Pump allows the submersible bearing to be inspected and replaced while the pump is still installed, shortening the work period and reducing maintenance costs.
Features
1. Application Effects
Submersible bearing inspection and replacement costs: 1/5 to 1/4 of conventional costs
Work period: Approximately 20 days ⇒ 2 days
(Reference value for a 1500mm diameter vertical pump (without overhead crane))
2. Scope
Diameter: 900mm or more
(Please contact us for small diameter pumps less than 900mm)
Total head: If the pump is long, please contact us
3. Track record
Achievements: Numerous deliveries to the Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Agriculture, Forestry and Fisheries, Ministry of Defense, Japan Sewage Works Agency, and local governments nationwide.
Other: Patented.
Received the Minister of Land, Infrastructure, Transport and Tourism Award at the 1st Infrastructure Maintenance Awards.
Received the Invention Encouragement Award at the Kanto Region Invention Awards organized by the Japan Institute of Invention and Innovation.
