A pump that can easily adjust the level while maintaining watertightness
Flexible base pump
Product Introduction
In areas with weak ground or when uneven settlement occurs due to an earthquake, the pump must be returned to its horizontal position to prevent failures such as bearing damage. With conventional vertical pumps, it was necessary to rebuild the pump base to keep it watertight, which was time-consuming and expensive. The flexible base pump uses a special base that allows you to easily adjust the horizontality while maintaining watertightness.
Features
1. Early recovery possible (quick recovery of drainage function)

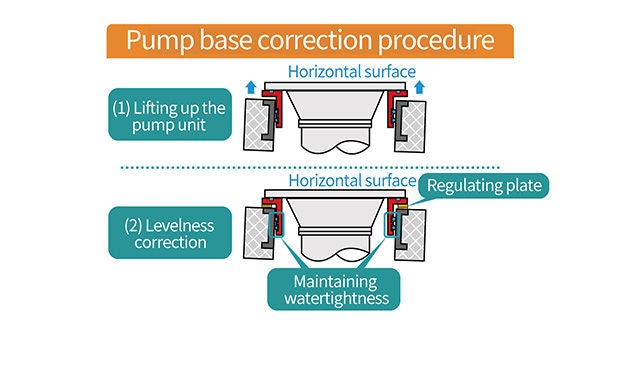

The level is corrected by jacking up the pump and inserting an adjustment plate without having to dig up the pump foundation, allowing for early recovery and reduced construction costs.
Correction work period: Approximately 15 days (reference)
2.Watertight

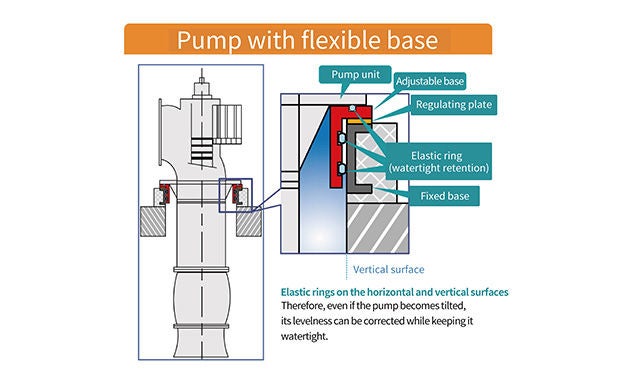

The watertightness is maintained by two elastic rings on the horizontal and vertical surfaces, so the pump's horizontality can be corrected while maintaining watertightness.
3. Track record
Achievements: Ministry of Land, Infrastructure, Transport and Tourism, Ministry of Agriculture, Forestry and Fisheries, Japan Sewage Works Agency,
Numerous deliveries to local governments nationwide
Other: Patented
Winner of the Invention Encouragement Award at the Kanto Region Invention Awards from the Japan Institute of Invention and Innovation
