For power plants Circulating pump for thermal power plant

Large Pumps

Pump Overview
Model: VZM type
Specifications: 73500 m3/h x 140 kPa x 4150 kW

Overview

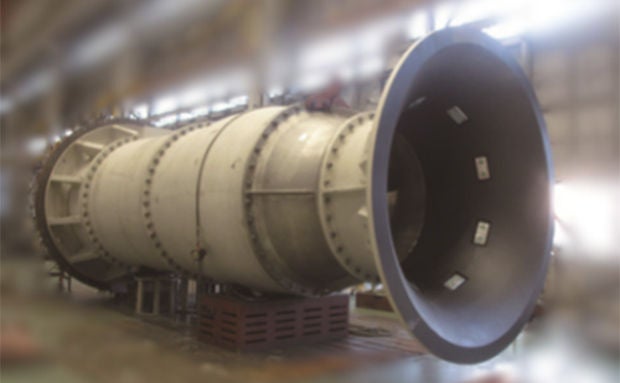

This is a large circulating water pump for coal-fired power plants with an output of 1,000,000 kW.

Features

①This pump uses rubber and special resin bearings for underwater bearings, and does not require water injection.

②As this pump is designed for use in seawater, nickel-added cast iron is used for the pump casing, which is always submerged, and stainless steel is used for the impeller and main shaft as a corrosion prevention measure.

③A number of sacrificial anodes are installed inside the pump to improve corrosion prevention performance. Another feature is that the casing is painted with a special paint that prevents marine life from attaching to it.
